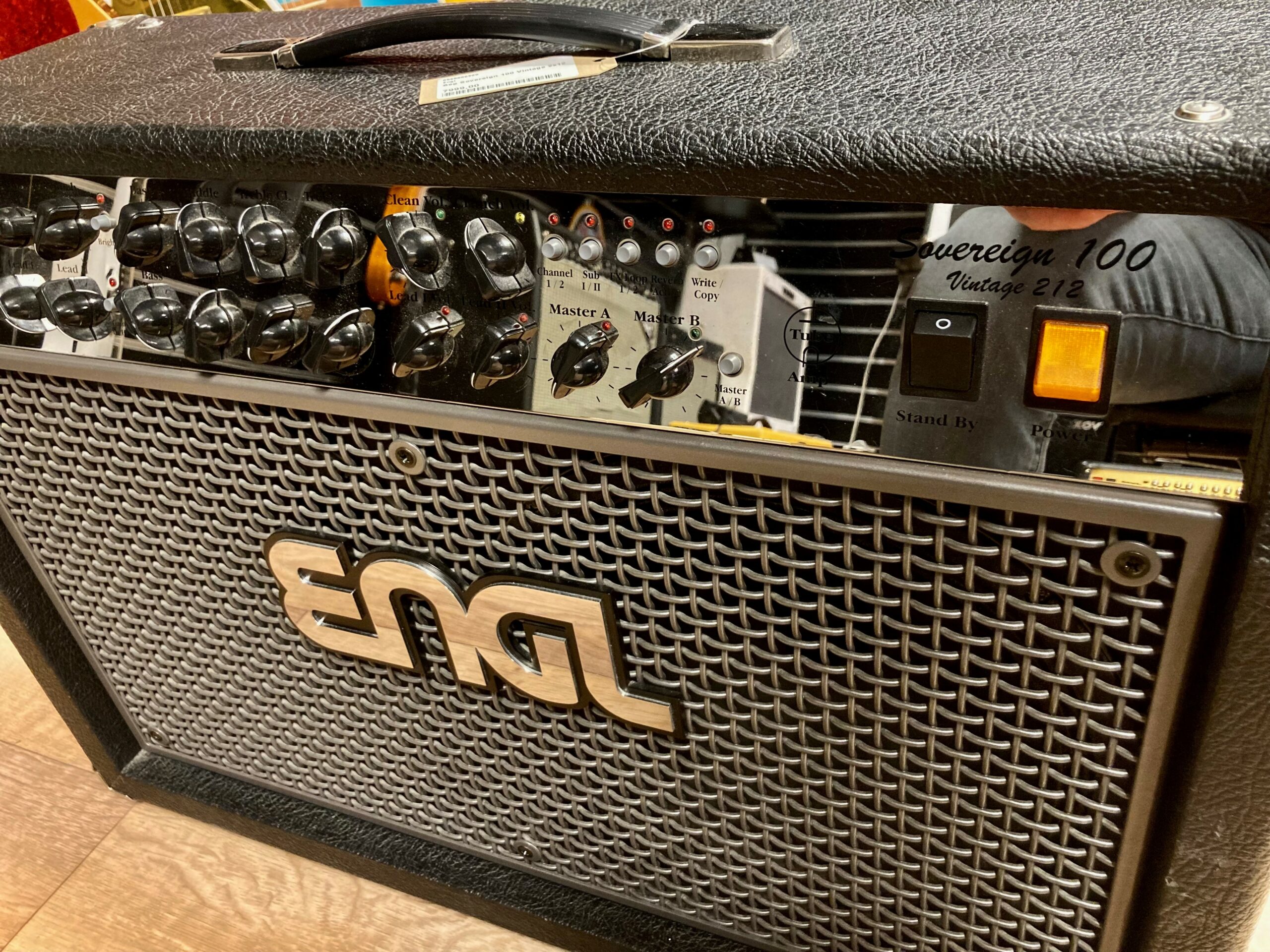

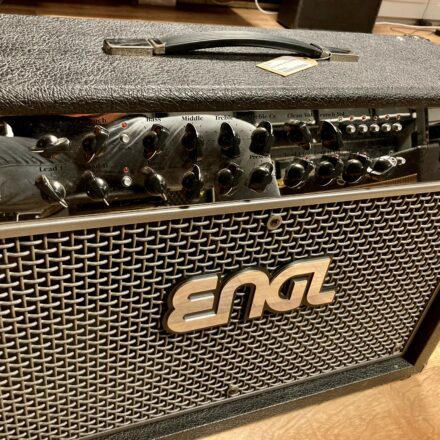

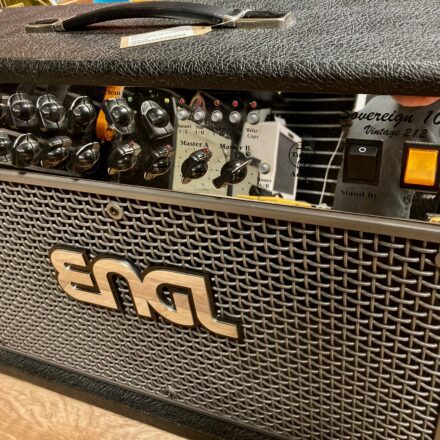

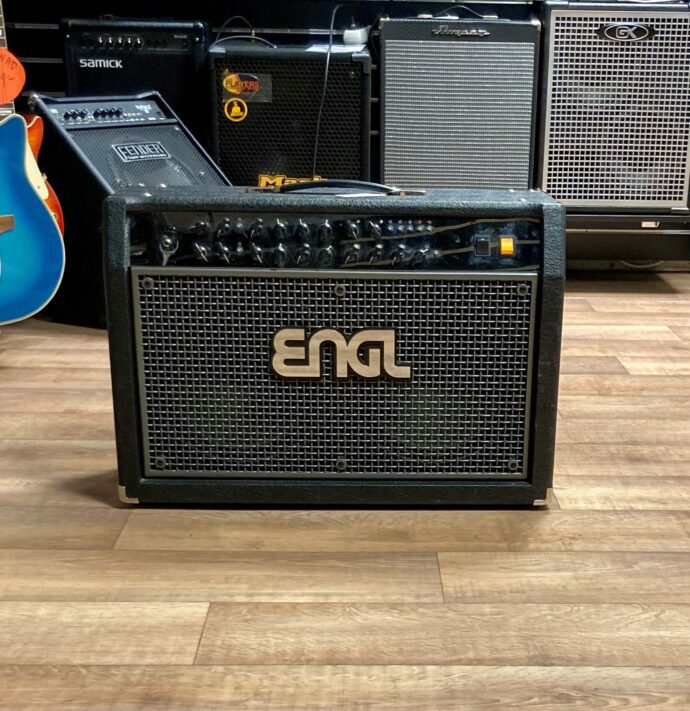

Sovereign 100W 2×12 Guitar Combo Amp Specifications:
- Output power: approx. 100 watts, adjusted accordingly to 4, 8 and 16 ohms
Input sensitivity levels
- Input: from -20 dB, nominal, max. 0 dB
- Effect Return: from -20 dB nominal, max. 0 dB
Output levels
- SEND, level range: from -20 dB to approx. 0 dB max.
- Frequ.Comp. Line Out: max. +12 dB (balanced), +6 dB (unbalanced)
- Power consumption: approx. 330 watts max.
Fuses
- External at 230/240 mains voltage: 2 ATL, internal: 2,5 ATL (T: slo-blo)
- External at 100/115/120 mains voltage: 4 ATL, internal: 5 ATL (T: slo-blo)
Tubes
- V1, V2, V3, V4: 6L6GC or 5881, matched sets
- V5: ECC83 FQ, input tube
- V6, V7: ECC83 selected
- V8: ECC83 standard
Logic control system
- Processor, software: AT89C52 microcontroller with internal 8K Flash Memory for software source code, upgradeable with external Programmer
- Memory: EEPROM 93C66 for data retention
System interfaces
- MIDI: Asynchronous data protocol according to the MIDI standard; MIDI program changes 0-127; MIDI channels 1-16; MIDI controller 7 (main volume, value 0-5 = Master Volume Mute, Mute, value
> 5 = default Master Volume level - Serial Amp Control: Proprietary ENGl asynchronous data protocol

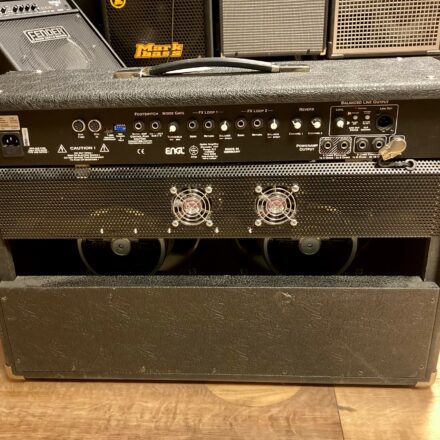

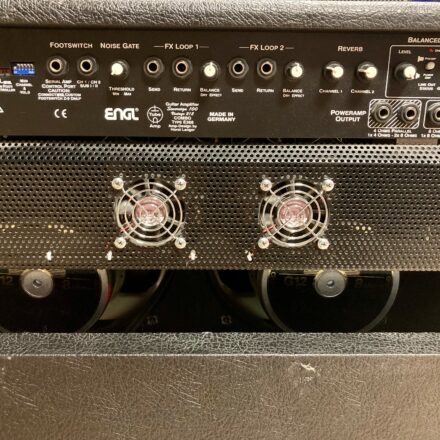

- Cooling: two fans each 12 volts DC – 1,2 watts
- Dimensions: 58 x 48 x 27 cm
- Weight: approx. 29 kg
